100% positive feedback V2021.3 MB Star SD Connect C4 with CF19 Laptop Xentry Benz Star

 MB SD Connect C4 Star Diagnosis SSD Plus Panasonic CF19 I5 4GB Laptop

Top 6 Reasons To Get MB SD Connect C4 Star Diagnosis Plus Panasonic CF19 I5 4GB Laptop:

  1. We will install the Software and test for you ready to use, convenient and save your time (Default language is English, if you want other languages, please leave message)
    2. Support Wireless
    3. Software Version: V2021.3 Panasonic CF19 SSD, works more stable and faster than hdd
    Hardware Verison: OS:2.3 CSD:2.8
    4. Supported Multi-Language: Bulgarian / Danish / Greek / Spanish / French / Italian / Korean / Polish / Romanuan / Serbo-Croatian / Turkish
    / Czech / German / Finish / Hyngarian / Japanese / Dutch / Portuguese / Russian / Swedish / English / Chinese
    5. Support Both Mercedes Benz Cars and Trucks
    6. Full Package Including Multiplexer, All the Cables, Connectors, Hard Disk and Laptop

New MB Compact 4 Features:

  1. New MB SD Connect Compact 4 Star Diagnosis support wireless diagnose;

2. New MB SD Connect Compact 4 Star Diagnosis not only support K line diagnose and CAN BUS,but also UDS diagnose protocol. Because old MB STAR C4 main board do not have UDS chip, so old MB STAR C4 can not support it;

3. Multiplexer now use Lan cable to connect

4. Connector adopt Military quick swap technology, it can support 10,000 times pull plug, more stable;

5. All core accosseries adopt original new packing chip, and 24hours test, guarantee the quality of the products;

V2021.3 MB SD Connect C4 Software Includes:

Xentry 03.2021
DAS 03.2021
EPC 11.2018
WIS 11.2018
SDmedia offline 2014
HHT-WIN
Vediamo 5.01.01
Vediamo Database 2019
Star Finder 2008 & 2016
PL73 2019
DTS Monaco 8.13.029

MB SD C4 Support Mer-cedes Benz Cars After Year 1989

Passenger Car Support List:

A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126),

E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140) SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197),

M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221),S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216),

CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107),SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)

Van Support List:

MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)

Truck Support List:

Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model series

Unimog Support List:

U20, UGN, UHN

Bus Support List:

TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/O403, CONECTO, O404, O405-O408,

Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500, O500/OH, OH, OH368, OF, OF384, LO, O400,

FURTHER MODEL SERIES

Super Sports Car Support List:

SLR(199)

Package List:

1pc x C4 Multiplexer
1pc x OBDII 16PIN Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 8PIN Cable
1pc x Lan Cable
1pc x SSD 256G
1set x Second Hand Panasonic CF19

评论

发表评论

此博客中的热门博文

How to solve Problem in multiplex network for renault can clip ?

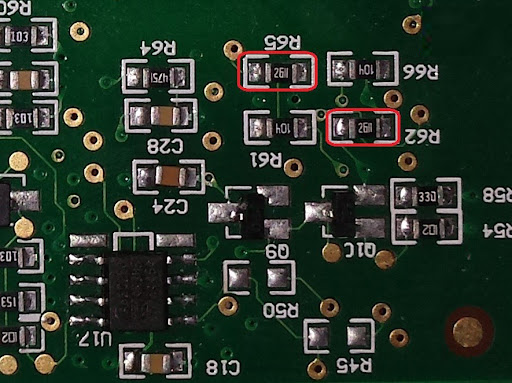

This is how to solve an issue of your  Renault CAN CLIP interface  with an error message “Problem in multiplex network” Almost ALL pcb Renault Can Clip has the bug as a wrong resistors (2 pc) in Low CAN.(Message – “Problem in multiplex network” will be shown) It’s a fairly common problem. The reason to the ugliness is banal – sealed resistors of smaller denomination. Instead of 26.1 kilohms (marking 2612), sealed with 2.61 kOhm (marking 2611). There is a file that point you what resistors must be replaced. Notice it when chose your Clip. It’s in Russian, but a picture explains all. The solution, I think, does not need to be explained. This is the best Renault CAN CLIP pcb with AN2135SC Source:  http://www.xingobd2.com/free-shipping-deals-best-quality-can-clip-v175-for-renault-diagnostic-interface-with-full-chip-an2135sc-an2136sc-multi-languages.html Consists of two boards – CAN and ISO (there are no single-board). On a working device, all four LEDs...
