How to Use XPROG-M to Read Freescale MC68HC908GR16(0M76Z)

Here xingobd2  share the procedures to read Freescale MC68HC908GR16(0M76Z) by XPROG-M.
 Preparations:
Procedures:
Open Xprog software (5.70, 5.74, 5.84) , click on “Read Security Bytes”.

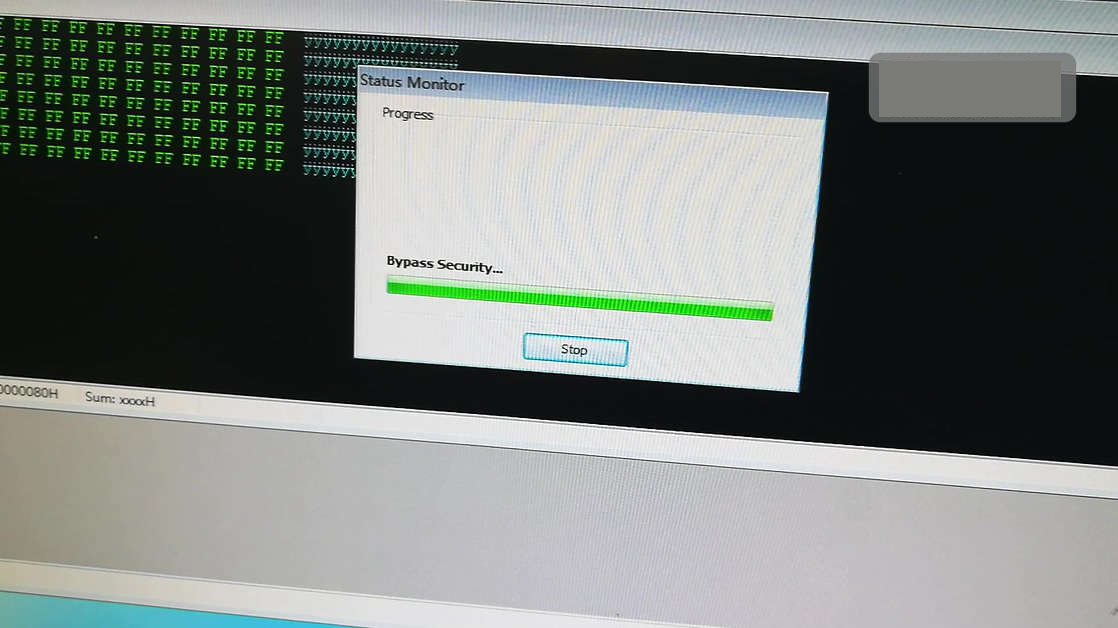

You can see the indicator flashes during the process.
f:id:xingobd2ebay:20190318002703j:plain
f:id:xingobd2ebay:20190318002722j:plain
f:id:xingobd2ebay:20190318002740j:plain
No need to enter any “Security Bytes Name”, just click on “OK”.
f:id:xingobd2ebay:20190318002909j:plain
Click on “Options”, then “Environment”.
f:id:xingobd2ebay:20190318003022j:plain
Select “Device”, then “Manual” and then input “C3F4C412C413C414”, then “OK”.
f:id:xingobd2ebay:20190318003147j:plain
Click on “Read”.
Brand: Freescale.
Type: MCU
Device: MC68HC908GR16(0M76Z)
Security bytes: C3G4C412C413C414 – ok
f:id:xingobd2ebay:20190318003356j:plain
f:id:xingobd2ebay:20190318003454j:plain
f:id:xingobd2ebay:20190318003559j:plain
f:id:xingobd2ebay:20190318003701j:plain
Done.
f:id:xingobd2ebay:20190318003847j:plain
